Blue-Airco® – Groundbreaking cooling and heating

blue-airco® at a glance

Blue-Airco air-conditioning solutions ensure a constant pleasant temperature for any compartment and are suitable for small boats to such over 60 feet long.

Perfect for boats with solar panels and batteries, the Blue-Airco® ensures 50% higher energy efficiency compared to on/off systems and 20% higher efficiency than traditional DC-AC-DC inverters.

Every Blue-Airco® is also extremely quiet at night, even under the most challenging seawater and energy supply conditions. Longevity and the highest environmental standards are at the core of its engineering.

The Blue-Airco® is an advanced marine full low-voltage air-conditioning solution that offers a highly efficient and sustainable approach to precise temperature control, providing maximum comfort on board.

With no start-up peak current and low power consumption, the Blue-Airco® allows boats without a generator to run air conditioning silently from their solar panels or domestic batteries. In ECO mode, the Blue-Airco® draws no more than 160W in 12V, ensuring peace and quiet overnight.

tomlogisch.com
how it works

Designed for longevity with high-quality materials and state-of-the-art technology.

With its ground-breaking approach, the Blue-Airco® for the marine lifestyle reduces energy consumption by 50% compared to on/off-systems.

It operates on a low-voltage direct current that is converted into a three-phase alternating current, always at low voltage, with variable frequency, thus allowing optimal and precisely adjustable performance, which ensures a constant air temperature within the compartment.

The electronic expansion valve allows control of the superheating and subcooling values of the refrigerant fluid, optimizing energy efficiency in any operating condition. The fan section is equipped with a variable-speed, high-efficiency BLDC motor, electronically controlled to ensure high performance and silence. The compressor starts smoothly at very low speed thanks to torque and speed control and then accelerates to cool down or heat up the air fast.

As the air temperature approaches the desired value, the compressor and fan slow down to maintain the air temperature as close as possible to the set point without fluctuations while the expansion valve precisely regulates the refrigerant flow rate to the compressor to optimize its performance.

The environmental impact of Blue-Airco® solutions has been reduced at each stage of the production process; for example, the soldering done to join copper pipes uses hydrogen that is produced on-site from distilled water, thus eliminating the need for conventional energy sources,such as propane and acetylene, as well as the need to use trucks to transport them in containers.

Contact us +

key benefits

Advantages of using Blue-Airco air-conditioning solutions

Compact and lightweight design is suitable for new constructions, existing boats, and refitting. Advanced technology reduces environmental impacts and contributes to a more sustainable lifestyle.

  • Ideal for solar-run, generator-free boats or those wishing to turn off the generator at night without sacrificing air conditioning.
  • 12, 24, and 48 VDC solution variants – with a zero-leakage guarantee.
  • Eco-mode for heating and cooling.
  • Temperature control with high accuracy, electronic control, and variable-frequency drive allows the fine adjustment of cooling and heating.
  • Smooth, silent, and reliable operation, with no inrush current at the start.
  • Maintains the desired ambient temperature effortlessly, providing maximum thermal comfort without temperature fluctuations.
  • Low and efficient energy consumption under every condition.
  • Maximum energy efficiency is achieved through the absence of DC-AC converters and rectifiers.
  • Energy efficiency is 50% higher than on/off-systems and 20% higher than traditional DC-AC-DC inverters.
  • Designed for longevity with high-quality materials and state-of-the-art technology.
  • The titanium seawater exchanger is highly resistant to corrosion and erosion.
  • The maximum seawater temperature in heating is 2°C and in cooling, 45°C.
  • Low long-term operational costs; refrigerant costs are around 30% less than that of international marine competitors.
  • Assembly and installation by tom logisch.

Please see our tom logisch installation service +

blue-airco® solutions

12, 24, and 48 VDC variants – with a zero-leakage guarantee.

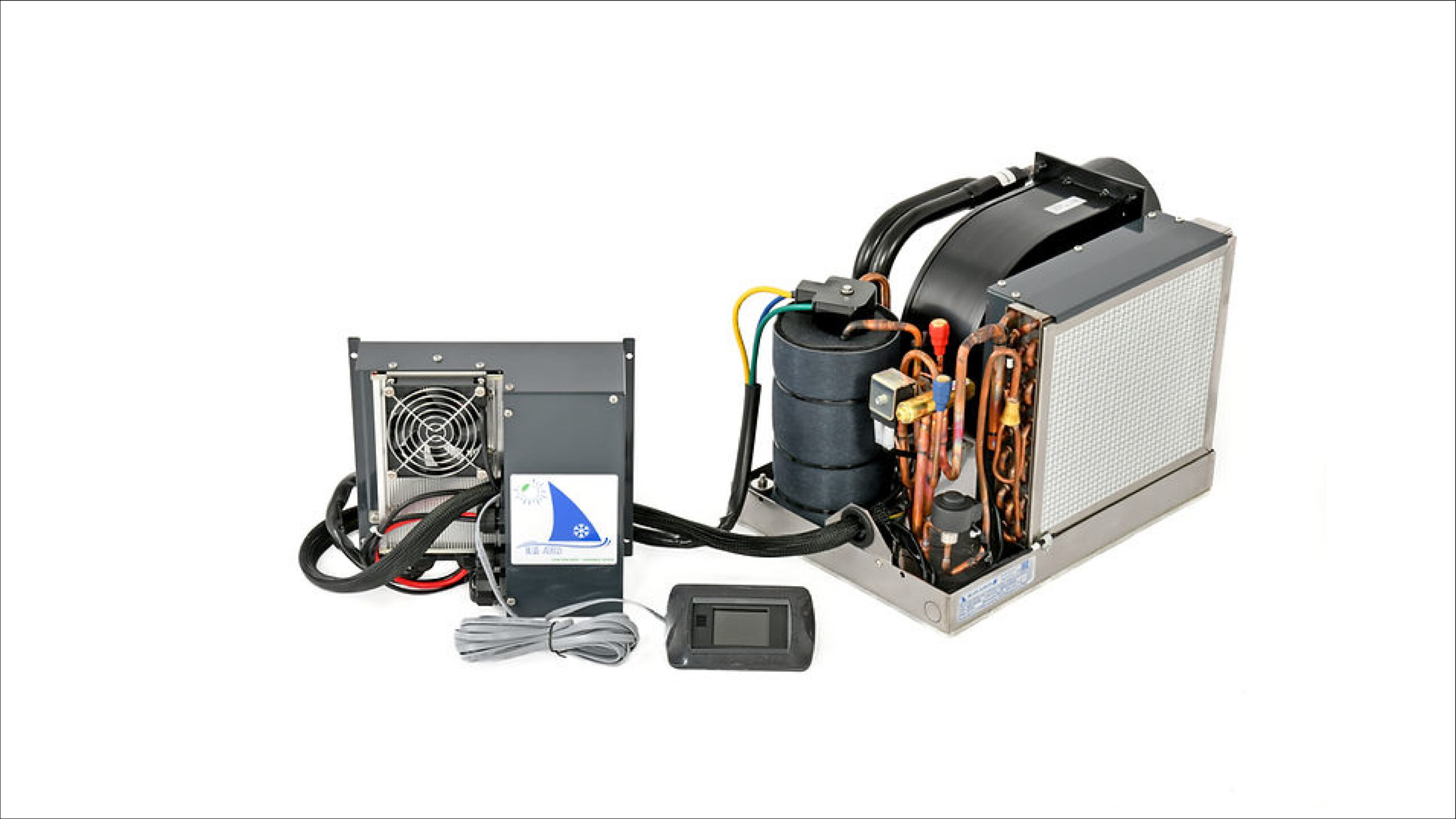

  • Blue-Airco® Monobloc 12V, 24V and 48V

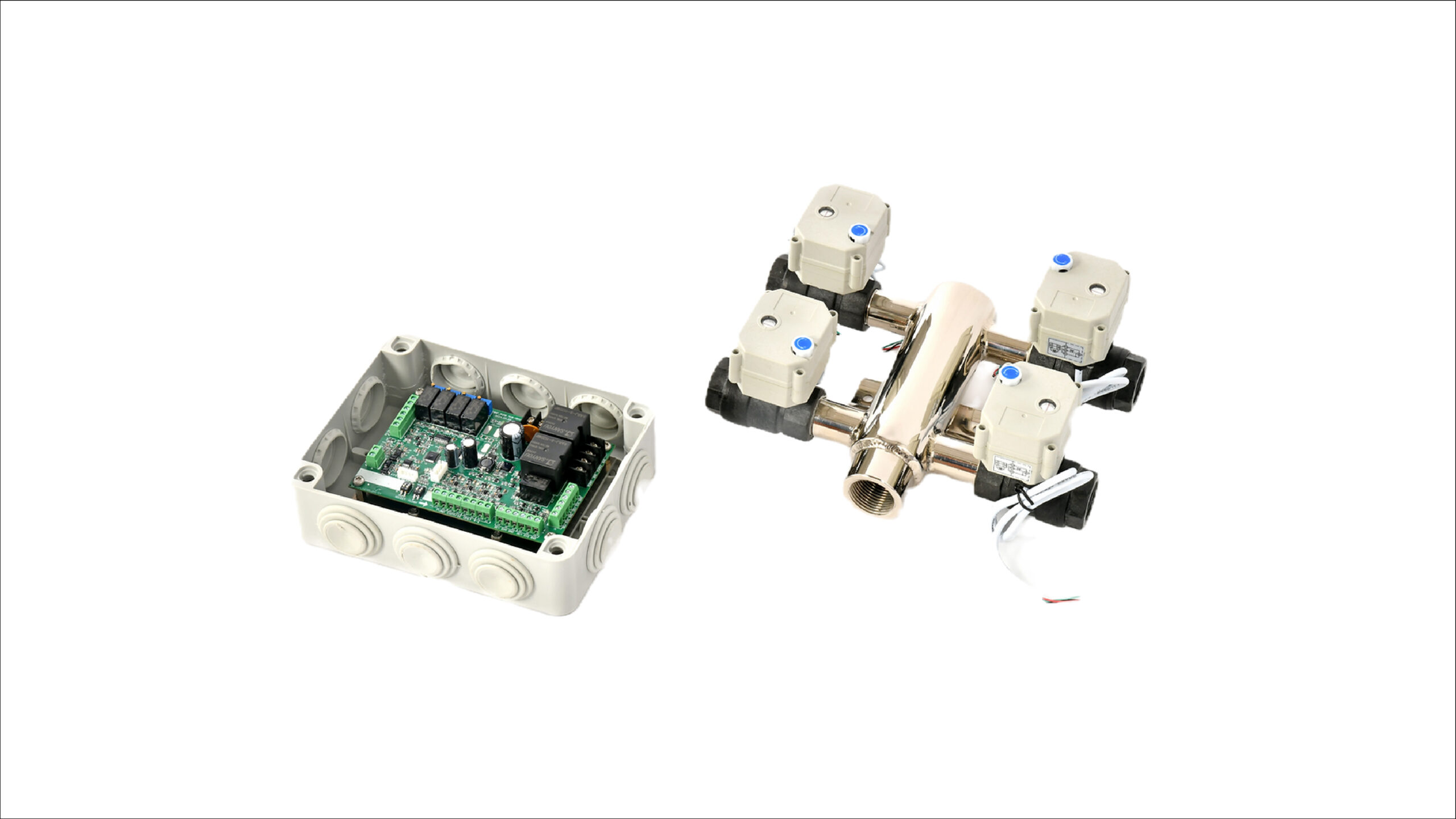

  • Blue-Airco® Circulation Pump 12V, 24V and 48V

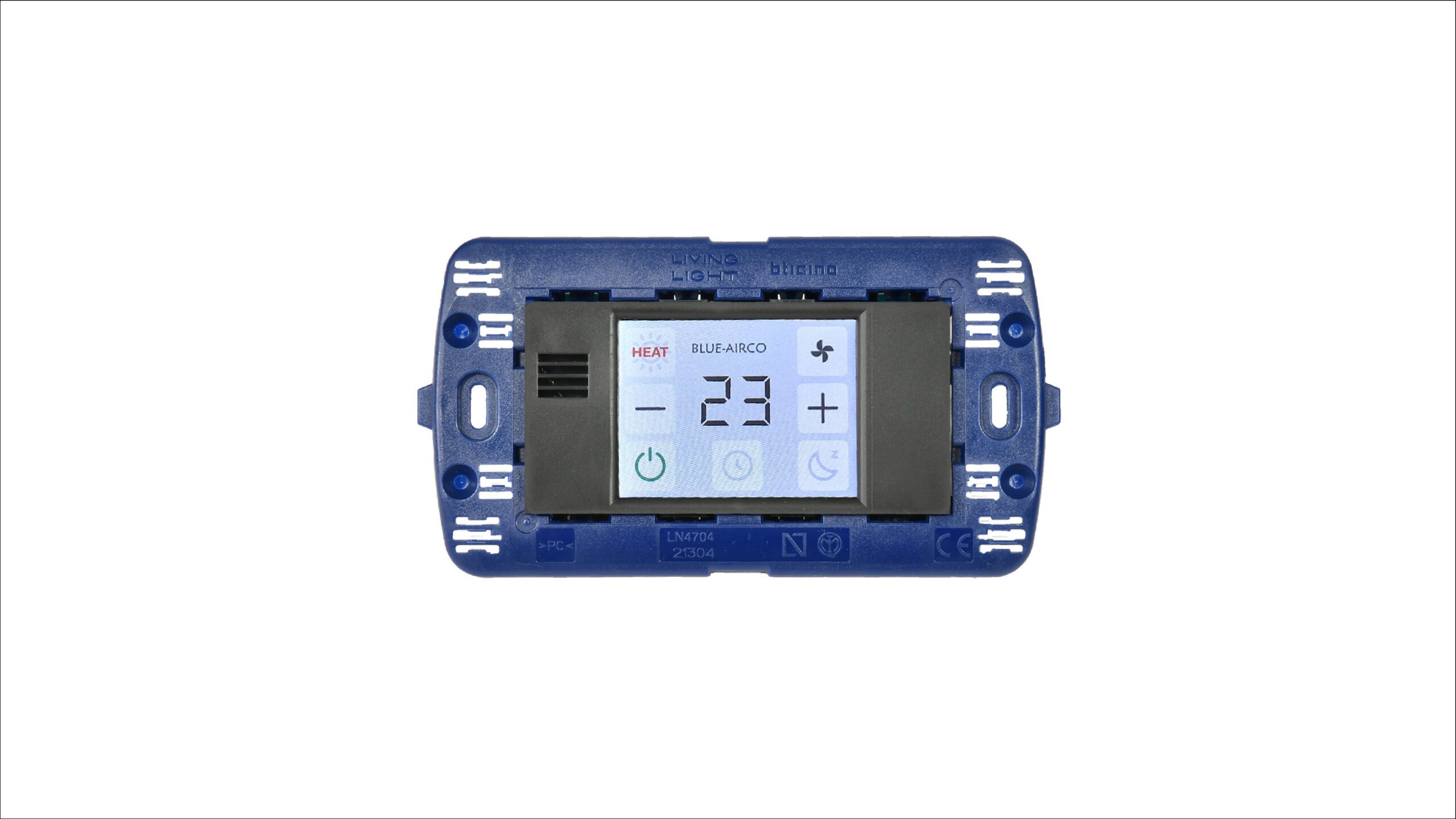

  • Blue-Airco® Efficient Flow AC Controller

Please review our privacy policy anytime before watching the Blue-Airco® YouTube video: Privacy policy +

Please review our privacy policy anytime before watching the Blue-Airco® YouTube video: Privacy policy +

Please review our privacy policy anytime before watching the Blue-Airco® YouTube video: Privacy policy +

Please review our privacy policy anytime before watching the Blue-Airco® YouTube video: Privacy policy +

key facts

Low and efficient energy consumption under every condition.

Blue-Airco® air-conditioning reduces energy consumption by 50% compared to marine on/off-systems.

  • Electronic expansion valve across the entire range to maximize energy efficiency in all usage conditions.
  • ECO function minimizes battery consumption with a 160W (12V) input power, ensuring extremely quiet operation.
  • Inverter technology ensures no start-up peak current.
  • Full low-voltage air conditioning with variable speed, achieved through a conversion process from DC input to variable frequency AC three-phase, low voltage.
  • BLDC motors for compressors, fans, and pumps provide maximum energy efficiency.
  • Controlled fan and compressor speed with superheating management.
  • Non-flammable R410A refrigerant is used for safety as well as maximum energy efficiency.
  • A corrosion-resistant titanium alloy heat exchanger ensures immunity to corrosion.
  • Blue-Airco® engineers have invested significant resources in research and development to reduce the refrigerant emissions to the minimum and reach their ‘zero leakage’ target.
  • Every Blue-Airco® is designed and manufactured in Italy.
  • Blue-Airco® received special mention for comfort afloat from the prestigious, industry-leading DAME Design Awards 2023.
